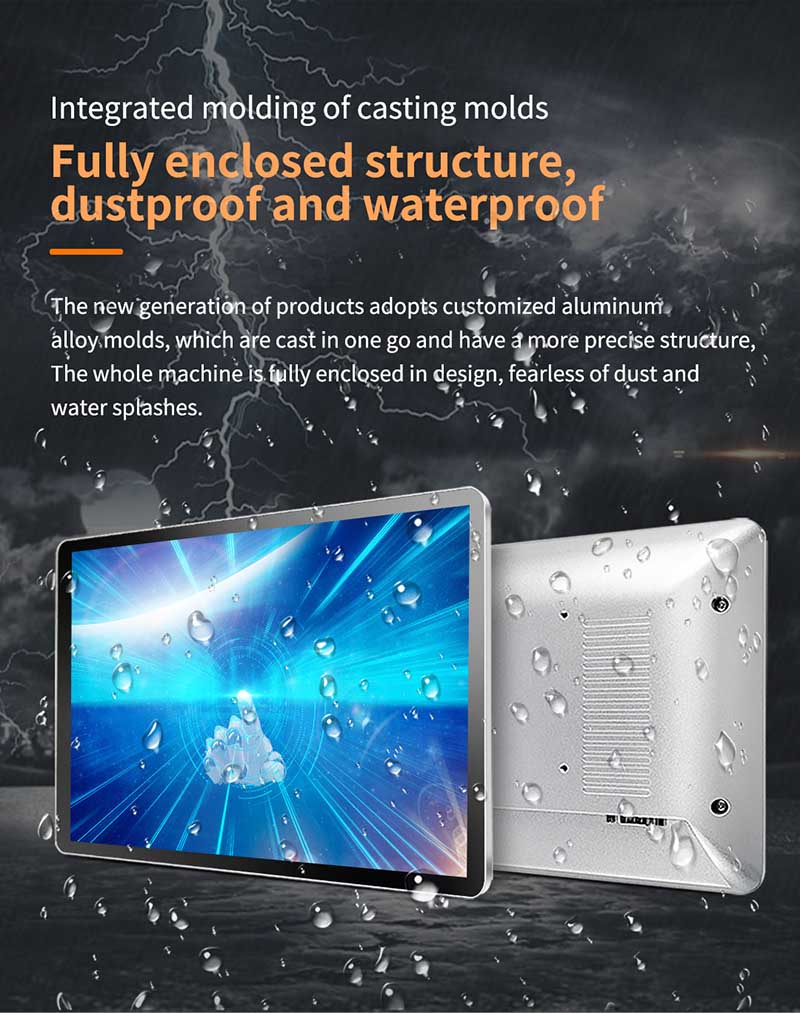

15.6 inch industrial rugged panel pc Non Air gap touch screen Monitor
- Model : MT1560-F
- 1)Different sizes available;
- 2)Capacitive touch screen;
- 3)Industrial A+ grade LCD panel;
- 4)Open frame design;
- 5)Optical bonding technology
- 6)Intelligence temperature control fan design,green and quiet.
- 7)Wide visual angle 178 degree;
- 8)Rich signal input,output interfaces,adapted in the different environments.
- 9)Build-in stable power,low consumption,long life span>60000hours
- Specifications
| Specification | ||
| General | ||
| Series | Water-proof and Open frame | |
| LCD Type | 15.6” TFT-LCD | |
| Video Input | VGA and DVI , HDMI – optional | |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
|
| Power Supply | Type: External brick | |
| Input (line) voltage: 100-240 VAC, 50-60 Hz | ||
| Output voltage/current: 12V 3A | ||
| Mount Interface | 1)VESA 75*75 or 100*100 mm | |
| 2)Mount bracket, horizontal or vertical | ||
| LCD Specification | ||
| Resolution | 1920×1200 @75Hz | |
| Dot Pitch(mm) | 0.297× 0.297 | |
| Nominal Input Voltage VDD | +3.3V(Typ) | |
| Viewing angle (v/h) | 80°/80° | |
| Contrast | 1000:1 | |
| Luminance(cd/m2) | 350cd/m2 （1000cd/m2 option） | |
| Response Time(Rising/Falling) | 5ms/6ms | |
| Support Color | 16.2M | |
| Backlight MTBF(hr) | 50000 | |
| Touchscreen Specification | ||
| Type | Capacitive touch screen | |
| Resolution | 10points touch | |
| Touch Life Cycle | 10 millions | |
| Touch Response time | 5ms | |
| Touch System Interface | USB interface | |
| Power consumption | +5V@80mA | |
| External AC Power Adapter | ||
| Output | DC 12V /4A | |
| Input | 100-240 VAC, 50-60 Hz | |
| MTBF | 50000 hr at 25°C | |
| Environment | ||
| Operating Temp. | 0～50°C | |
| Storage Temp. | -20～60°C | |
| Operating RH: | 20%～80% | |
| Storage RH: | 10%～90% | |
