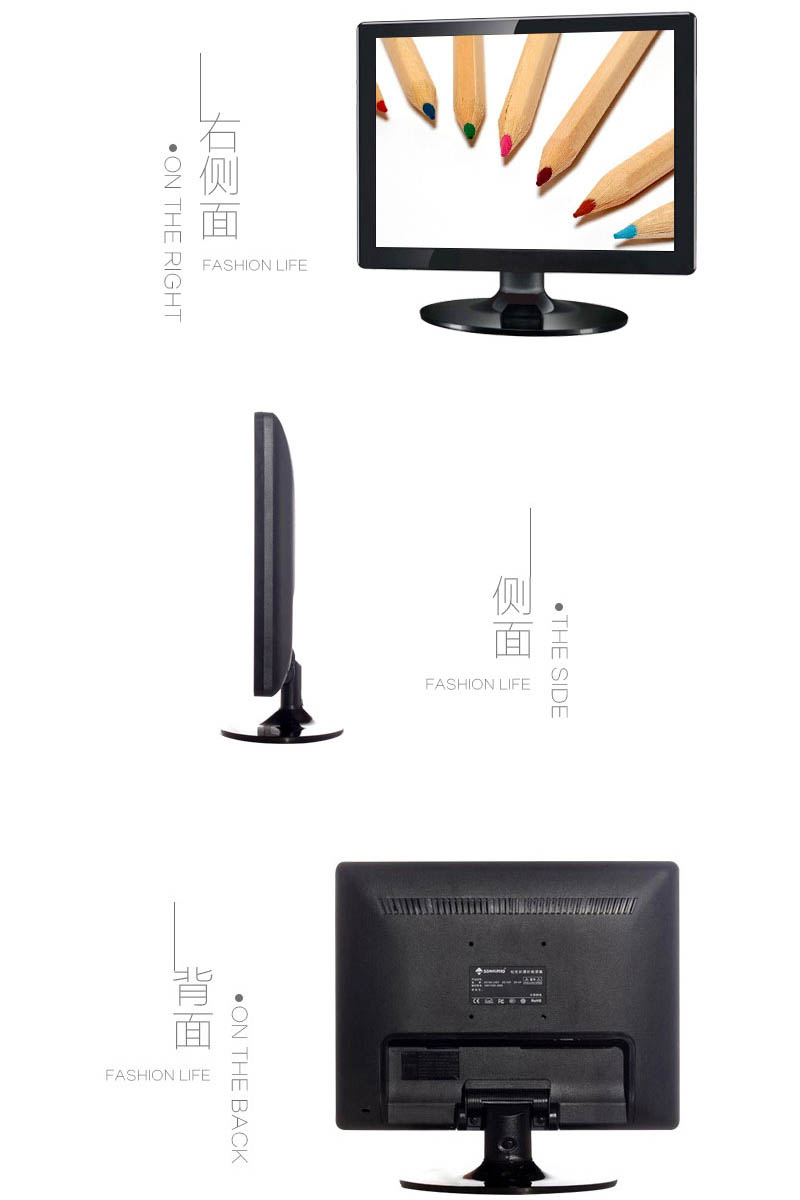

Desktop 15 inch LCD Monitor 4:3 HD Display 1024×768
- Model No.: ML1501
- 15" LCD Monitor Screen with 1024x768 Resolution. LED backlight source for long time continuous working.
- Aspect Ratio: 4:3, Response Time: 5ms, Brightness: 250cd/m2, Contrast: 800:1. NTSC/PAL Auto Switch. Viewing Angle: 160 Degrees Horizontal, 160 Degrees Vertical.
- Great for Home/Office/Store Surveillance Camera STB, PC, DVD Player and Other Video Equipments.
- With multiple ports: VGA,HDMI, (AV,USB, BNC available), perfect for connecting with CCTV monitor and DVR system.
- Specifications
| Dispaly | Screen | 15 inch LCD screen | ||||||||||||
| Resolution | 1024×768 @60Hz | |||||||||||||
| Display mode | LED backlight | |||||||||||||
| Viewing angle | 176°/170° | |||||||||||||
| Contrast | 800 | |||||||||||||
| Brightness | 250cd/m2 | |||||||||||||
| Dot Pitch(mm) | 0.264mm×0.264mm(H,V) | |||||||||||||
| Support Color | 16.7M colors | |||||||||||||
| Response Time | 5ms | |||||||||||||
| Screen scale / area | 4:3 / 304*228mm | |||||||||||||
| Interface | VGA | 1×VGA Input | ||||||||||||
| HDMI | 1×HDMI Input | |||||||||||||
| Power | DC power input | |||||||||||||
| Physical Paramater | Dimension: 318*305*45mm | |||||||||||||
| N.W: 4KG | ||||||||||||||
| G.W: 4.5KG | ||||||||||||||
| Others | Wall mounting | VESA,75x75mm | ||||||||||||
| Power consumption | <20W | |||||||||||||
| Stand-by | 0.5W | |||||||||||||
| OSD Language | Multi language OSD operation | |||||||||||||
| Environment | Operating Temp. | -10～60°C | ||||||||||||
| Storage Temp. | -15～70°C | |||||||||||||
| Accessories | Adapter | 1 pcs | ||||||||||||
| Desktop Bracket | 1 pcs | |||||||||||||
| Cables | VGA, HDMI cable optional | |||||||||||||
